Space Swing doors

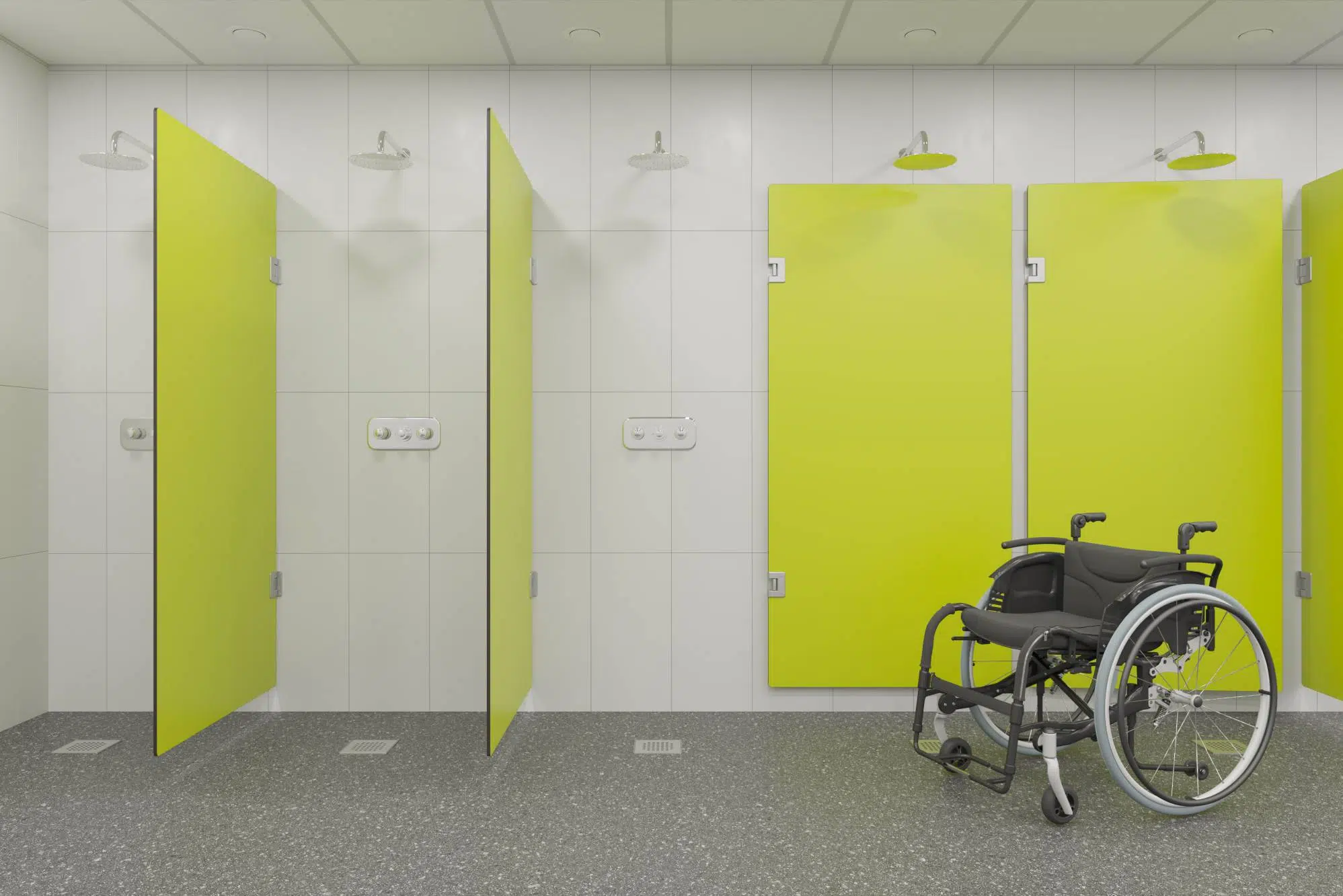

Space Swing Doors in 10 mm compact laminate with adjustable swing hinges in chrome. CNC milling around the door leaf.

Standard:

Handle hole

Option:

Door handle white
Door handle grey
Door handle chrome

Clothing hook, art.no AP854001

Alla kulörer för Wallsystems skärmväggssystem

For other colors/patterns, please refer to Abet Laminati or contact us for advice.

Wall and partition panel format

Front, end and partition walls 1879×1300 mm.
Partition walls 1860 mm.
Door format 1862x600mm, 1862x900mm.

Frame

Constructed of high pressure laminate (compact laminate) 10 mm thick. ISO4586/EN438.

Profiles

Natureloxerad aluminium varav merparten är förborrade och kapade i rätt längder. Dolt infästningssystem av laminaten i profilerna.

Floor pillars

Column bases are adjustable between 95-150 mm.

Hinges

Swing door hinge in chrome. Three fixed positions: Closed, open outwards and open inwards.

Delivery

Delivery according to drawings. Each order comes with an accompanying drawing and installation instructions as per the design documentation.

Machining

Space can be sawed and drilled using customary woodworking tools with carbide blades. The edges can be ground and polished, but they do not need to be painted or protected from moisture in any other way.

Water resistance

The homogenous laminate tolerates moisture and water. It is not attacked by mould or rot. The walls can be washed using a high-pressure washer, which is a requirement imposed by many industries for cost-effective cleaning.

Impact resistance

High pressure laminate is one of the market’s most tolerant building materials. The laminate has a hard and resilient surface that is incredibly difficult to make impression marks in.
